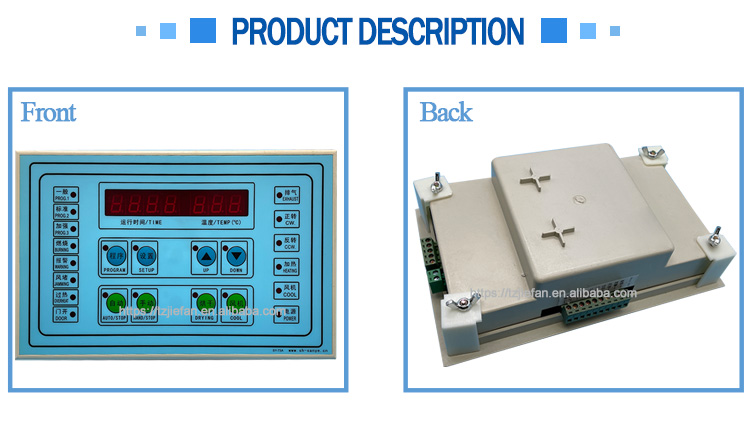

Sy-73A computer board computer controller of dry cleaning machine dryer machine accessories

The computer controller is specially designed and manufactured for fully automatic dryer. The performance of the computer is stable and reliable, the man-machine interface is friendly, and the operation is simple.

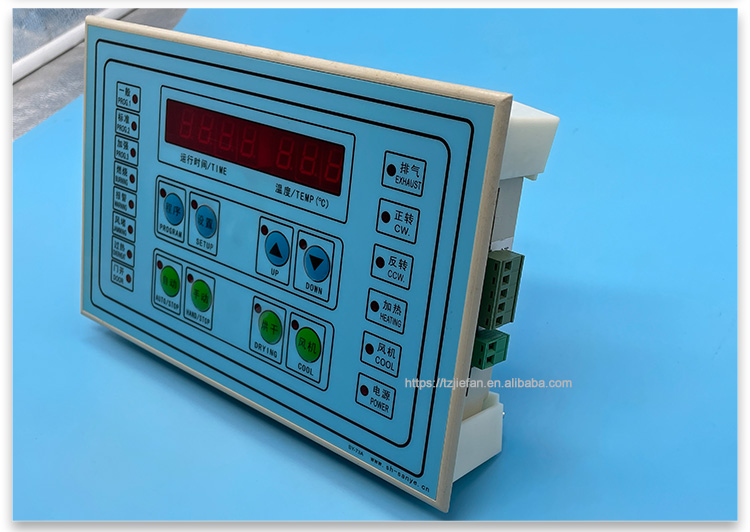

Features:

1. The light touch panel has good sealing performance, waterproof, dustproof, anti-corrosion, and long key life;

2. High-speed microprocessor;

3. Using LED light display, it is convenient to clearly see the current operating status;

Main technical parameters
1. Working temperature: 0- 50 ℃;
2. Drying temperature: 0-150 ℃
3. Working humidity: 40-93% (40℃ no condensation);
4. Anti-dry disturbance: Comply with IEC-801 fast transient pulse group sensitivity requirements;
5. MTBF: ≥ 10,000 hours;
6. Operating voltage: AC220V (+10%, -15%), 50Hz ± 2Hz

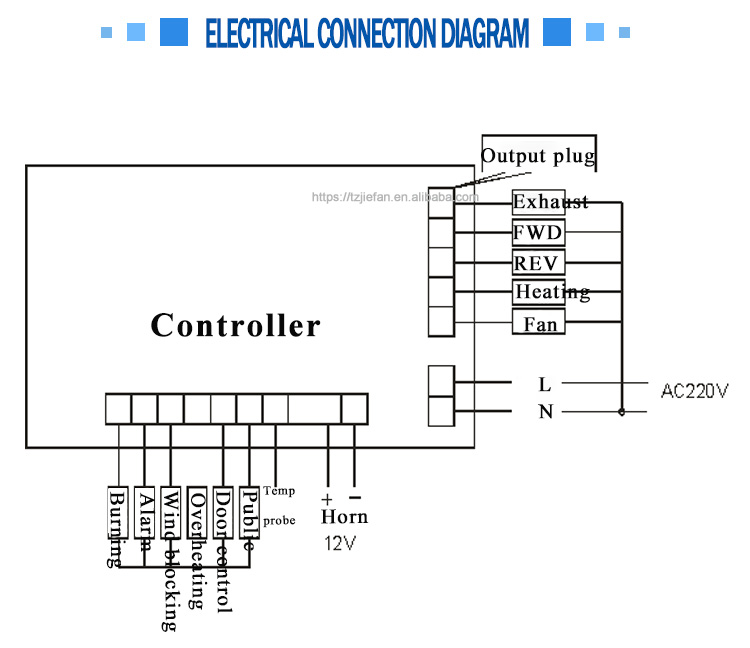

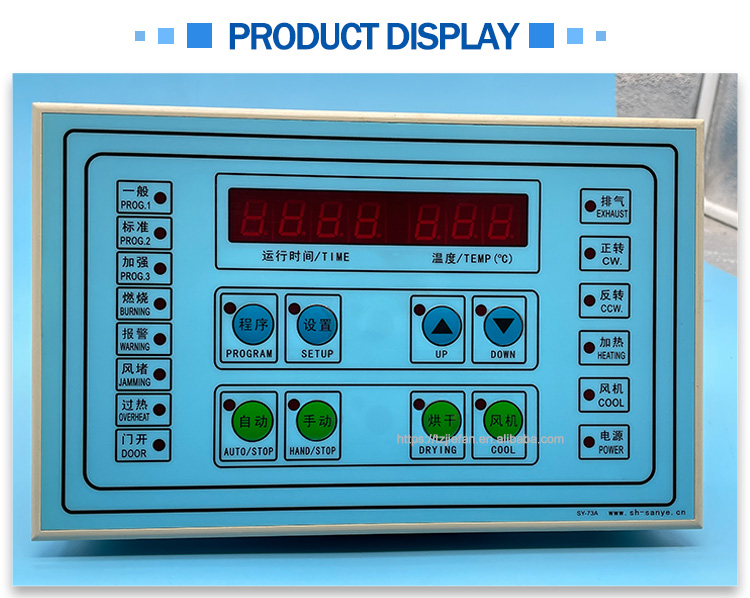

Work and failure display
1. Door opening indicator light: when the door is opened, the light is on and the output is off. The buttons of automatic, drying and cooling are invalid.
When the door closes, the light goes out.
2. Overheat indicator: when the temperature of the combustion chamber is too high, the light is on. Close the output
3. Air blocking indicator light: when the dust collection network is blocked, the light will be on and the output will be off; Dust collection nets need to be cleaned.
4. Alarm indicator light: when the igniter fault: light, output alarm. Press the automatic or manual keyboard
Can stop alarm sound.
5. Combustion indicator light: when liquefied gas is burning: light on
Note: The above functions depend on the installation of the machine detection probe. If no probe is installed, the above function is invalid.
