Sx164003A Computer Board Washer Controller Operation Panel for Factory Garment Washing machine

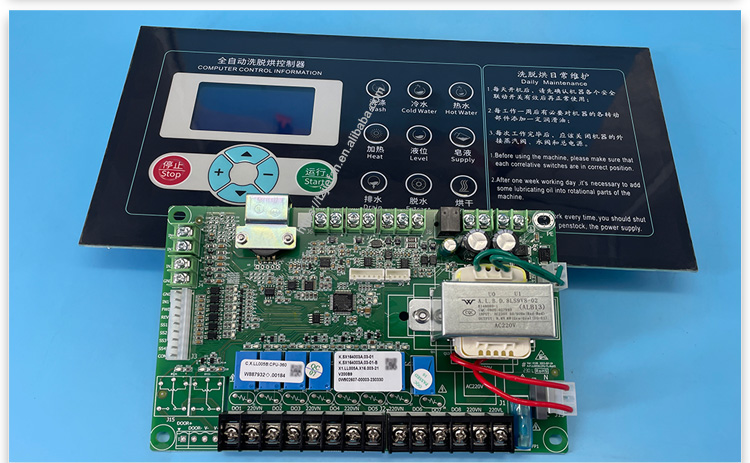

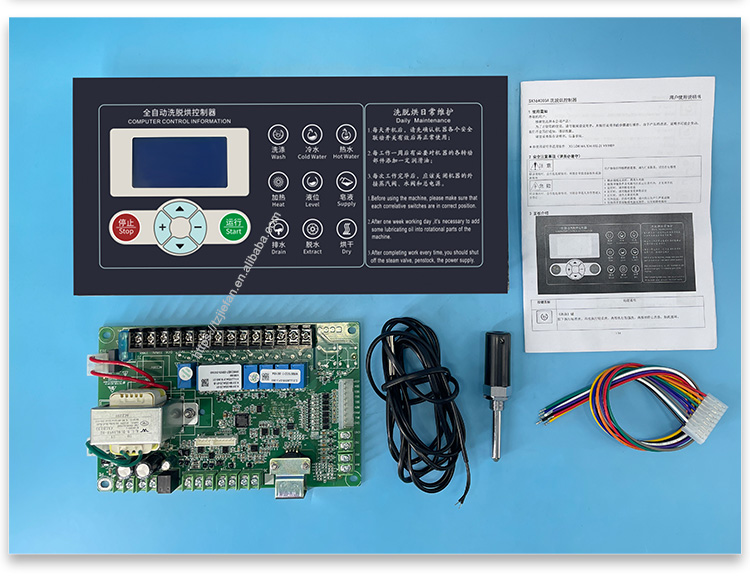

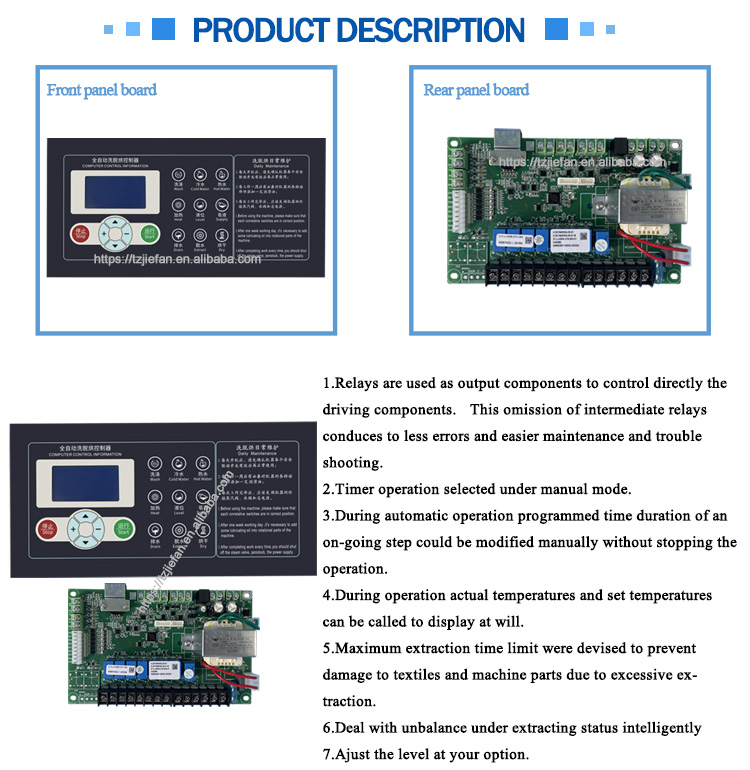

SX164003A controller is specially designed for the control of the automatic washer extractor. It features stability and reliability in operation. SX164003A controller has very convenient human-machine interaction interface with liquid crystal display to show state of operation of the machine including temperatures at Led display and thus helps monitoring effect. A reliably sealed, water and dust proof key panel is adopt which contains light touch keys with over one million times working life. The controller provides both automatic and manual working modes. Under manual mode, all keys are properly interlocked to avoid possible misoperation. For automatic mode, 30 different cycles can be programmed and upon a single touch of the [Start] key, the machine will run automatically to the end of the selected cycle.
