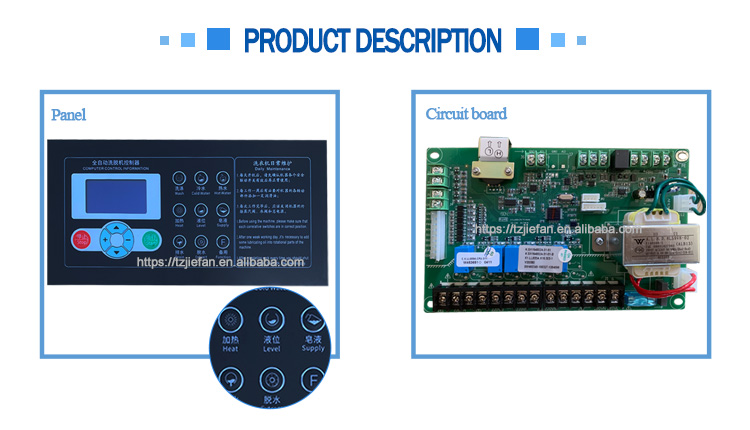

Sx164002A Washing Machine Relay Board Computer Controller Operation Panel

SX164002A controller is specially designed for the control of the automatic washer extractor. It features stability and reliability in operation. SX164002A controller has very convenient human-machine interaction interface with liquid crystal display to show state of operation of the machine including temperatures at Led display and thus helps monitoring effect. A reliably sealed, water and dust proof key panel is adopt which contains light touch keys with over one million times working life.

Press the "+" and "-" keys at the same time to enter the "parameter setting interface" during the power-on countdown:
After entering the "parameter setting" interface, press the "↑" and "↓" keys to select the parameter setting item, and press the "↑" and "↓" keys.Press the "Run" key to enter the item.
After entering the project, press "↑" "↓" to select sub-items, to modify sub-items, press "+" "-"
key to modify the parameter (press and hold the key to quickly modify the set value), press the "stop" key to exit the parameter revise.
After completing the modification, press and hold the "Stop" key for 3 seconds to exit the parameter setting and enter the idle interface.
