SX075000A
KEFALONG
Product Description

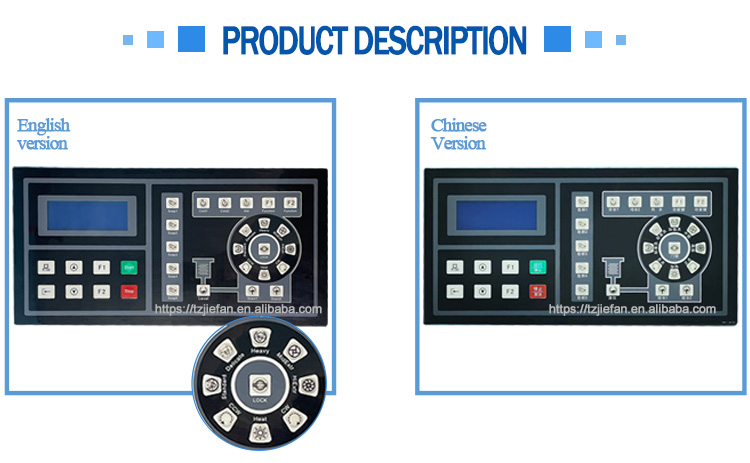

| SX075000A controller is specially designed for the control of the automatic washer extractor. It features stability and reliability in operation. SX075000A controller has very convenient human-machine interaction interface with liquid crystal display to show state of operation of the machine including temperatures at Led display and thus helps monitoring effect. A reliably sealed, water and dust proof key panel is adopt which contains light touch keys with over one million times working life. The controller provides both automatic and manual working modes. Under manual mode, all keys are properly interlocked to avoid possible misoperation. For automatic mode, 30 different cycles can be programmed and upon a single touch of the [Start] key, the machine will run automatically to the end of the selected cycle. Controller parameters and washing process programs can be uploaded and downloaded using USB on SX075000A. | |
| Use Equipment | Automatic washing machine,Cleaning machine |
| Unit | SET |
| Product model | SX075000A |
| Boundary dimension | 400*200*32mm |
| I/O board size | 270*135mm |
SX075000A controller also provides washer extractor with the following characteristics:
1.Relays are used as output components to control directly the driving components. This omission of intermediate relays conduces to less errors and easier maintenance and trouble shooting.
2.Timer operation selected under manual mode.
3.During automatic operation programmed time duration of an on-going step could be modified manually without stopping the operation.
4.During operation actual temperatures and set temperatures can be called to display at will.
5.Maximum extraction time limit were devised to prevent damage to textiles and machine parts due to excessive extraction.
6.Deal with unbalance under extracting status intelligently
7.Ajust the level at your option.
8.Various parameters integrated in the computer, which can be set up by manuafacturer before Exworks.
