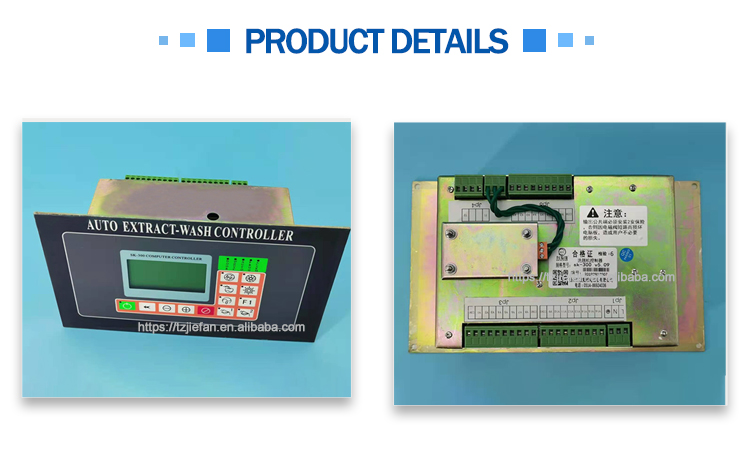

Sk300 washer controller Industrial Washing Machine Main Panel Controller Computer Board

The washer-extractor with SK-300 microcomputer has the following features:

1.Show the temperature and water-lever through figures,man-machine interaction interface gets better.

2.Output with relays,no transition relays,decrease troubles and difficulties in maintenance.

3.Timing in manual operation.

4.During automatic running ,directly modify the work time and operation of the current step ,No need to stop.

5.During the running, see the fact temperature and set the temperature at any time,as well as modify the setting temperature.

6.The longer extract protection time can avoid damages to work and clothes in the long extract time.
