SY-82D main panel for industrial washing machine controller of Semi-Automatic Washing Machine

Share to:

SY-82D main panel for industrial washing machine controller of Semi-Automatic Washing Machine

The controller is specially designed for the control of the automatic washer. It features stability and reliability in operation.

1. After confirming that the wiring is correct, connect to the power supply
2. Make sure that the environmental conditions and power supply voltage are under operating conditions before turning on the machine.
3. Do not check the information while running.
4. Do not change the parameter settings at will during operation.
5. When running, do not get too close to the machine.
6. Do not pull or twist the power cord or communication line to avoid serious failure.
7. Do not touch the computer components directly with your hands to avoid static electricity damage.

Availability:

Quantity:



Inquire Add to Basket

Model:
SY-82D
Brand:
KEFALONG

Product Description

Product Description

工业洗衣机详情_01

The controller is specially designed for the control of the automatic washer. It features stability and reliability in operation.

1. After confirming that the wiring is correct, connect to the power supply

2. Make sure that the environmental conditions and power supply voltage are under operating conditions before turning on the machine.
3. Do not check the information while running.
4. Do not change the parameter settings at will during operation.
5. When running, do not get too close to the machine.
6. Do not pull or twist the power cord or communication line to avoid serious failure.
7. Do not touch the computer components directly with your hands to avoid static electricity damage.

Use Equipment	Industrial Washing Machine
Unit	SET
Product model	SY-82D
Boundary dimension	23715064mm
Mounting hole size	220*132mm

1. Main technical parameters
1. Working temperature: 0- 50 ℃;
2. Heating temperature: 0-90 ℃
3. Working humidity: 40-93% (40℃ no condensation);
4. Anti-dry disturbance: in line with IEC-801 fast transient pulse group sensitivity requirements;
5. MTBF: ≥ 10,000 hours;
6. Operating voltage: AC220V (+10%, -15%), 50Hz ± 2Hz

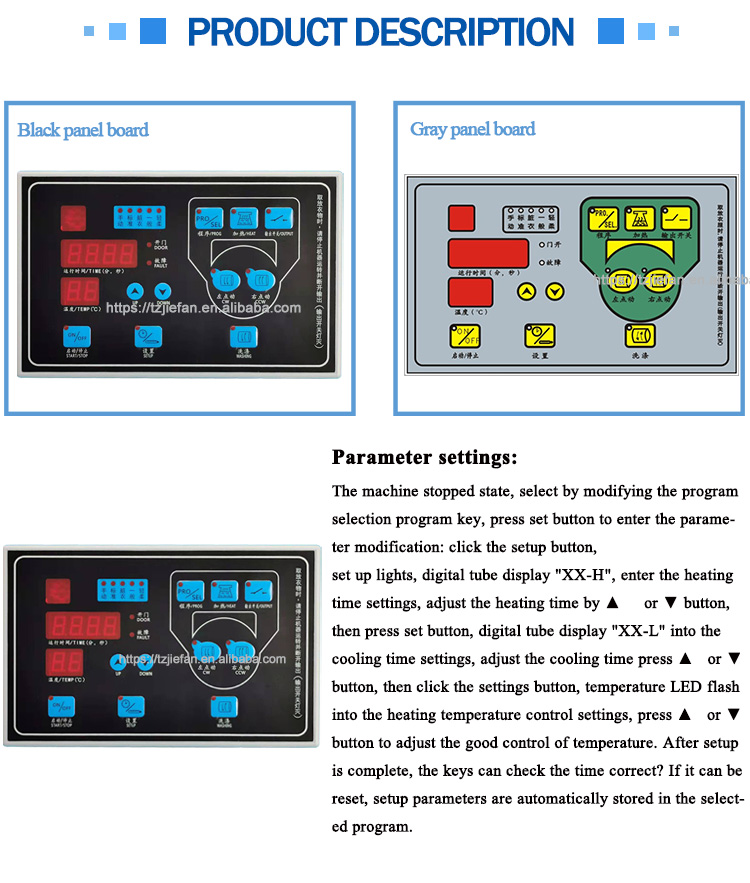

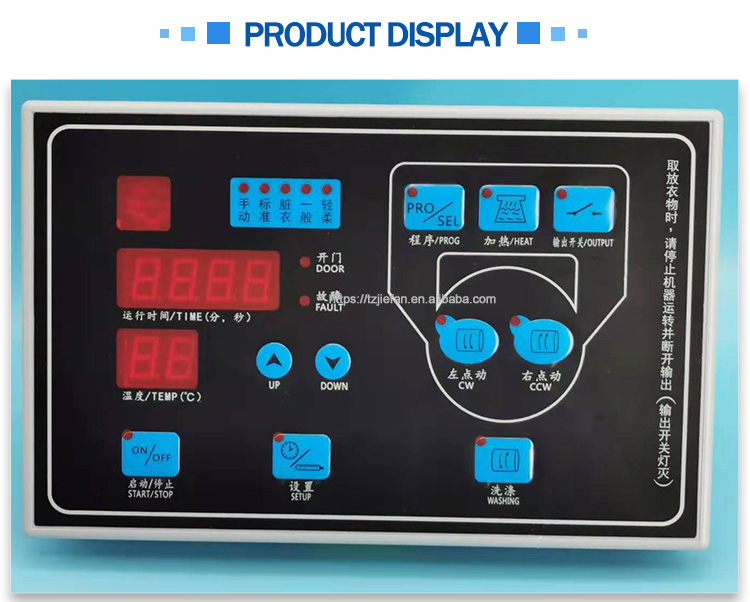

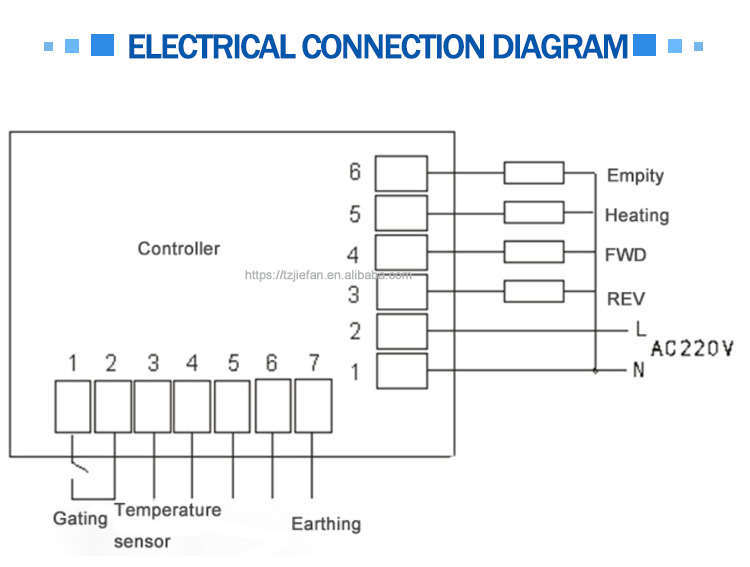

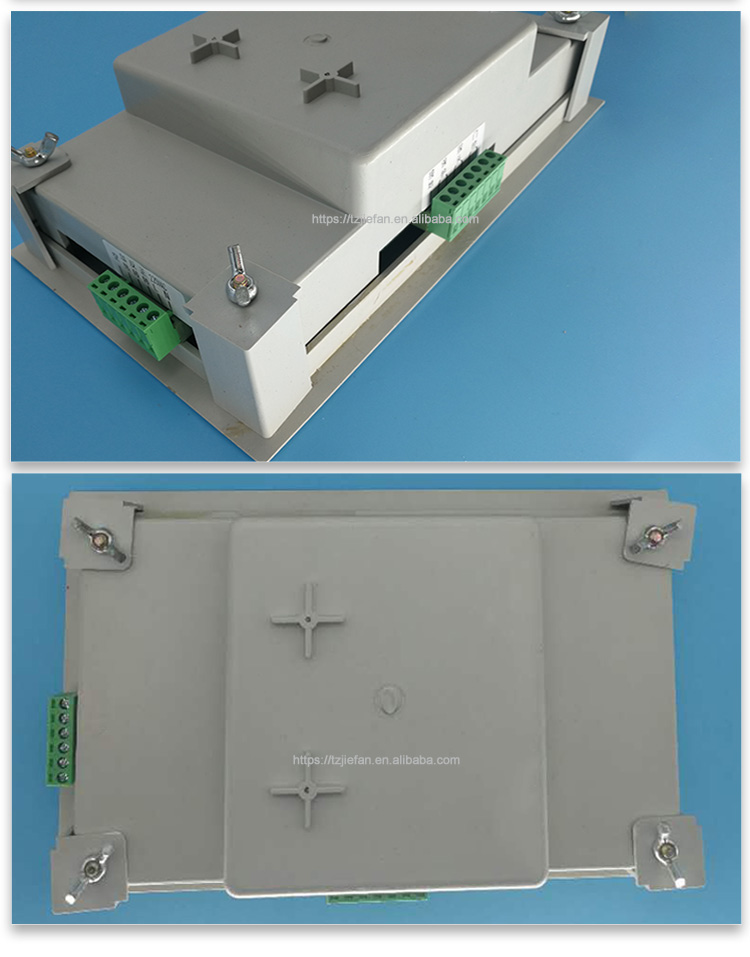

SY-82D详情_02 SY-82D详情_03 SY-82D详情_04 SY-82D详情_05
