SK326 laundry washer controller main panel of large industrial washing machine

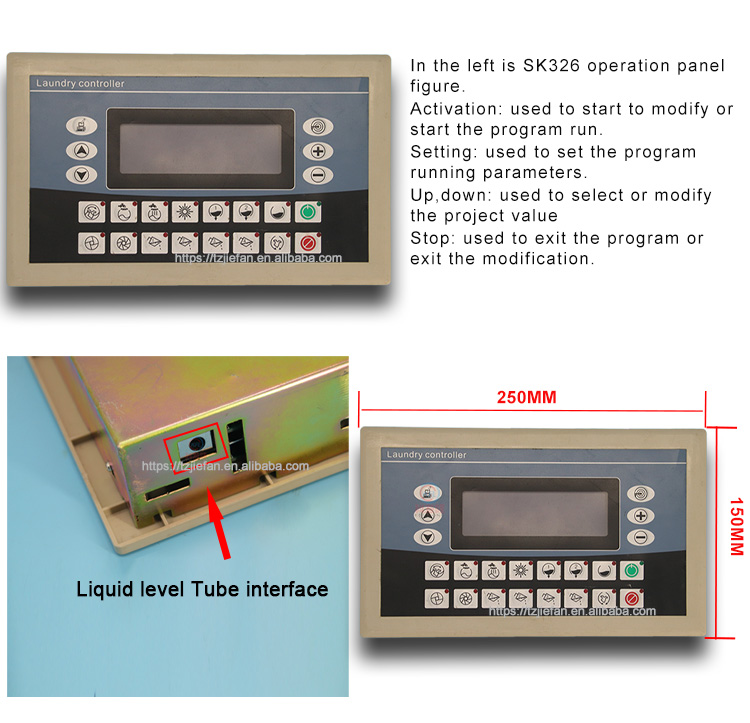

SK-326 computer control panel is specially designed and manufactured for automatic washing machine. The computer has stable and reliable working performance and perfect functions. It has 8 switching value inputs and 21 relay outputs, and can control 1 temperature and 1 water level sensor at the same time. Moreover, SK-326 computer adopts large screen dot matrix liquid crystal display, which has a good all-Chinese man-machine dialogue interface, and the liquid crystal display screen displays the working condition of the machine instantly; The working state of each key is indicated by the light emitting tube, which helps to monitor the machine running. Its touch panel has good sealing performance, waterproof, dustproof and corrosion resistance, and its key life is as long as more than 1 million times. The computer provides two working modes of manual operation and automatic operation, and there is a perfect interlock function between the keys of manual operation to avoid misoperation. The automatic operation mode can compile the required 30 programs at will. When running the program, the whole laundry process will be completed automatically as long as the "run" key is pressed.
