SK319
KEFALONG
Product Description

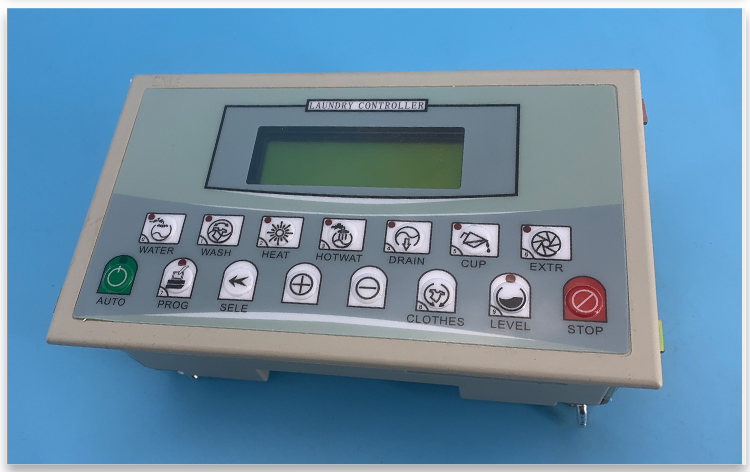

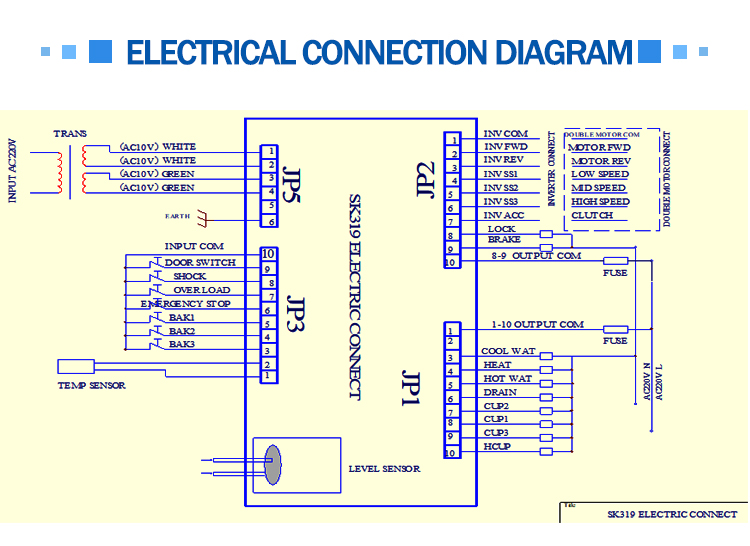

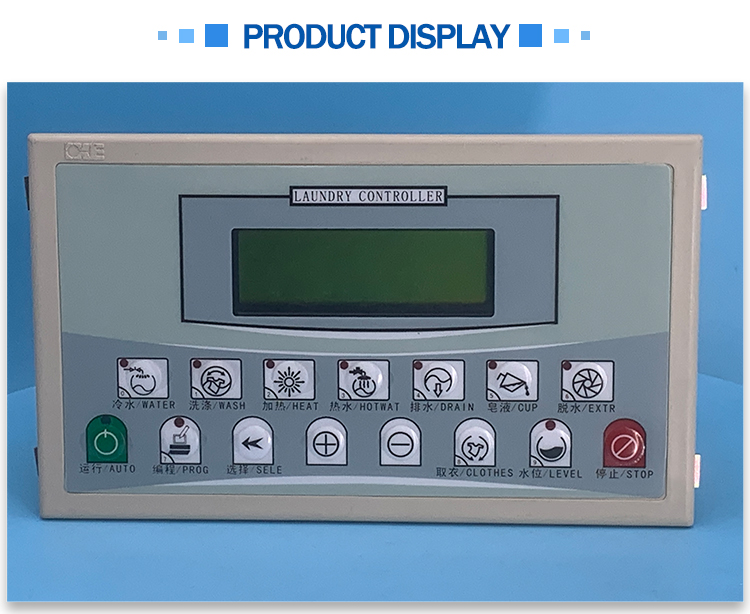

SK-319 microcomputer control panel is specially designed for the full automatic washer-extractor. It features stability and reliability in operation and adequacy in functions with 8 inputs and 16 outputs as well as simultaneous control of one temperature point. SK-319 microcomputer includes the electronic water level system that constantly monitors the level of the water in the washwheel and displays the level in digits.The SK-319 microcomputer has very convenient man-machine interaction interface with liquid crystal display(122 X 32 dots) to show states of operation of the machine including time of each stage. The microcomputer provides both automatic and manual working modes. Under manual mode all keys are properly interlocked to avoid possible misoperation. For automatic mode 30 different cycles (programs) can be programmed and upon a single touch of the "Start" key , the machine will run automatically to the end of the selected cycle. And each cycle (program) include 30 steps at most | |
| Use Equipment | Automatic washing machine,Cleaning machine |
| Unit | SET |
| Product model | SK319 |
| Boundary dimension | 196*116*60mm |
| Installation size | 182*102mm |

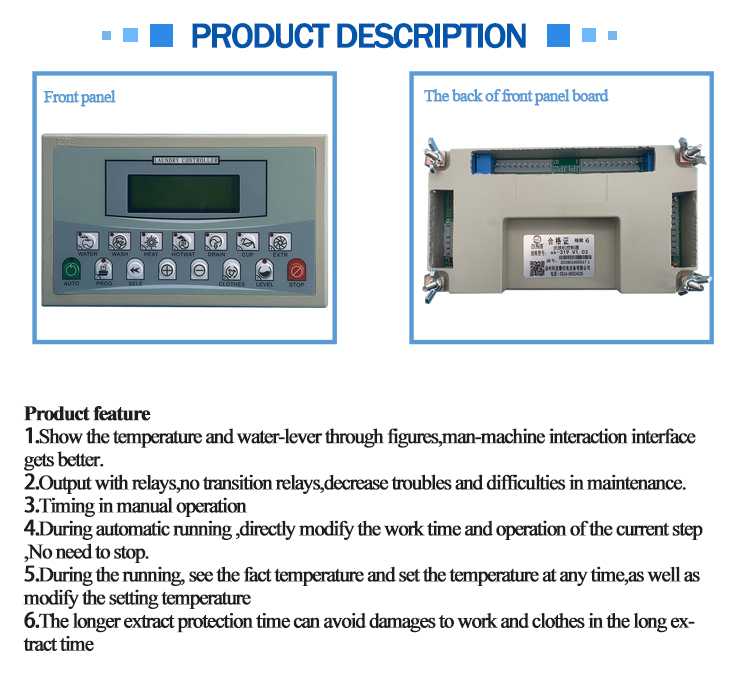

Product feature
1.Show the temperature and water-lever through figures,man-machine interaction interface gets better.
2.Output with relays,no transition relays,decrease troubles and difficulties in maintenance.
3.Timing in manual operation
4.During automatic running ,directly modify the work time and operation of the current step ,No need to stop.
5.During the running, see the fact temperature and set the temperature at any time,as well as modify the setting temperature
6.The longer extract protection time can avoid damages to work and clothes in the long extract time
