SK13600A washer controller for industrial automatic washer extractor main panel

SK13600A controller is specially designed for the control of the automatic washer extractor. It features
stability and reliability in operation.

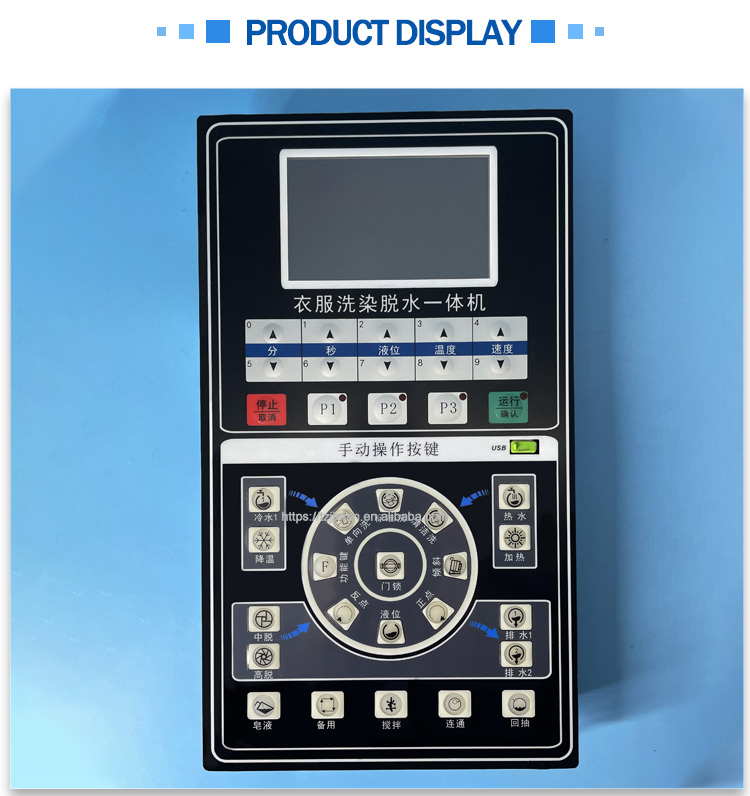

SK13600A controller has very convenient human-machine interaction interface with liquid crystal display to
show state of operation of the machine including temperatures at Led display and thus helps monitoring effect. A
reliably sealed, water and dust proof key panel is adopt which contains light touch keys with over one million times
working life.
The controller provides both automatic and manual working modes. Under manual mode, all keys are properly
interlocked to avoid possible miss operation. For automatic mode, 30 different cycles can be programmed and upon
a single touch of the [Start] key, the machine will run automatically to the end of the selected cycle.
Controller parameters and washing process programs can be uploaded and downloaded using USB on SK13600A.
