KH3008A main controller with 485 communication double water inlet computer board controller for commercial washing machine GW09

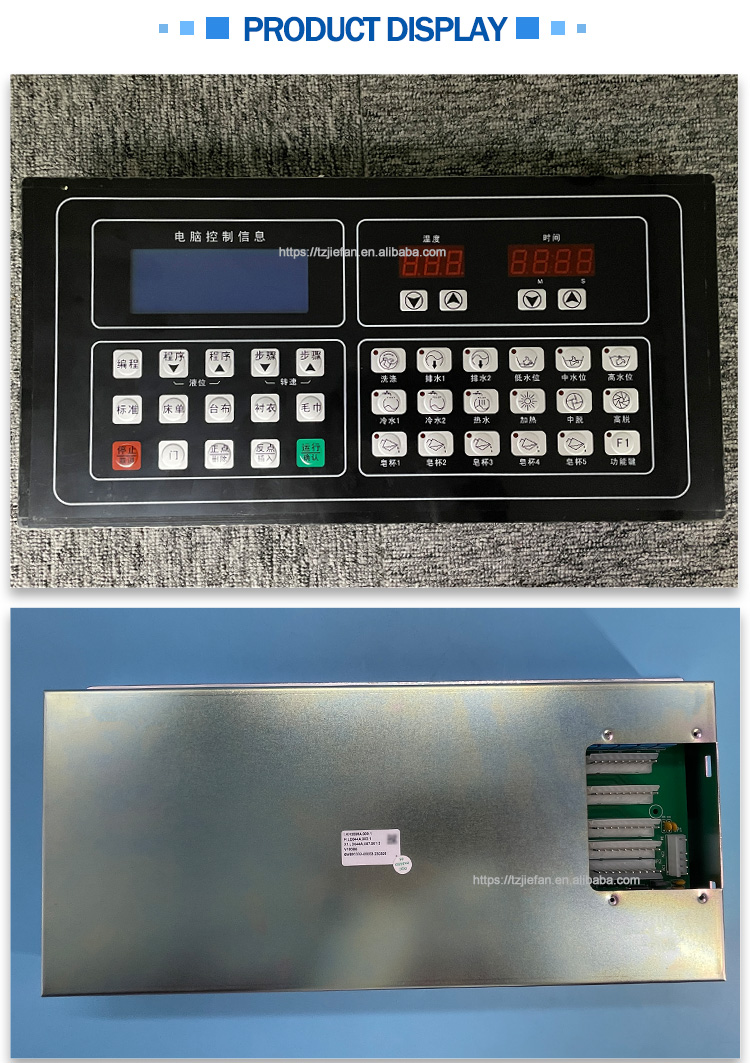

KH3008A controller is specially designed for the control of the automatic washer extractor. It features stability and reliability in operation. KH3008A controller has very convenient human-machine interaction interface with liquid crystal display to show state of operation of the machine including temperatures at Led display and thus helps monitoring effect. A reliably sealed, water and dust proof key panel is adopt which contains light touch keys with over one million times working life. The controller provides both automatic and manual working modes. Under manual mode, all keys are properly interlocked to avoid possible misoperation. For automatic mode, 30 different cycles can be programmed and upon a single touch of the [Start] key, the machine will run automatically to the end of the selected cycle. Controller parameters and washing process programs can be uploaded and downloaded using USB on KH3008A.
