KEFALONG XT166B KH166A LCD touch screen washer controller computer board of coin-operated automatic washing machine


XT166B computer controller is designed and manufactured for automatic self-help washers. The performance of the computer is stable and reliable, with a variety of parameters built in, and the manufacturer uses a large flexibility. When running the program, as long as the amount of coin is satisfied, press the "START" key to complete the whole process of laundry.

KH166A is a controller especially designed for commercial vended washer extracters.It is composed of industrial control board LY014A and operation panel HM166A. Industrial control board is designed for industrial laundry equipments.The operation panel is 4.3 inch colorful touchscreen which makes the parameter setting and programming so easy. The big buttons and big font words display makes the operation very friendly.
Availability:
Quantity:
  • XT166B/ KH166A

  • KEFALONG

Product Description

上烘下洗详情_01



KH174001A controller is specially designed for the control of the automatic washer extractor. It

features stability and reliability in operation.

KH174001A controller has very convenient human-machine interaction interface with liquid crystal display to show state of operation of the machine including temperatures at Led display and thus helps monitoring effect. A reliably sealed, water and dust proof key panel is adopt which contains light touch keys with over one million times working life.

KH174001A主图1
Use Equipment Automatic washing machine,Cleaning machine
Unit SET
Product model XT166B/KH166A
Boundary dimension 210*130mm

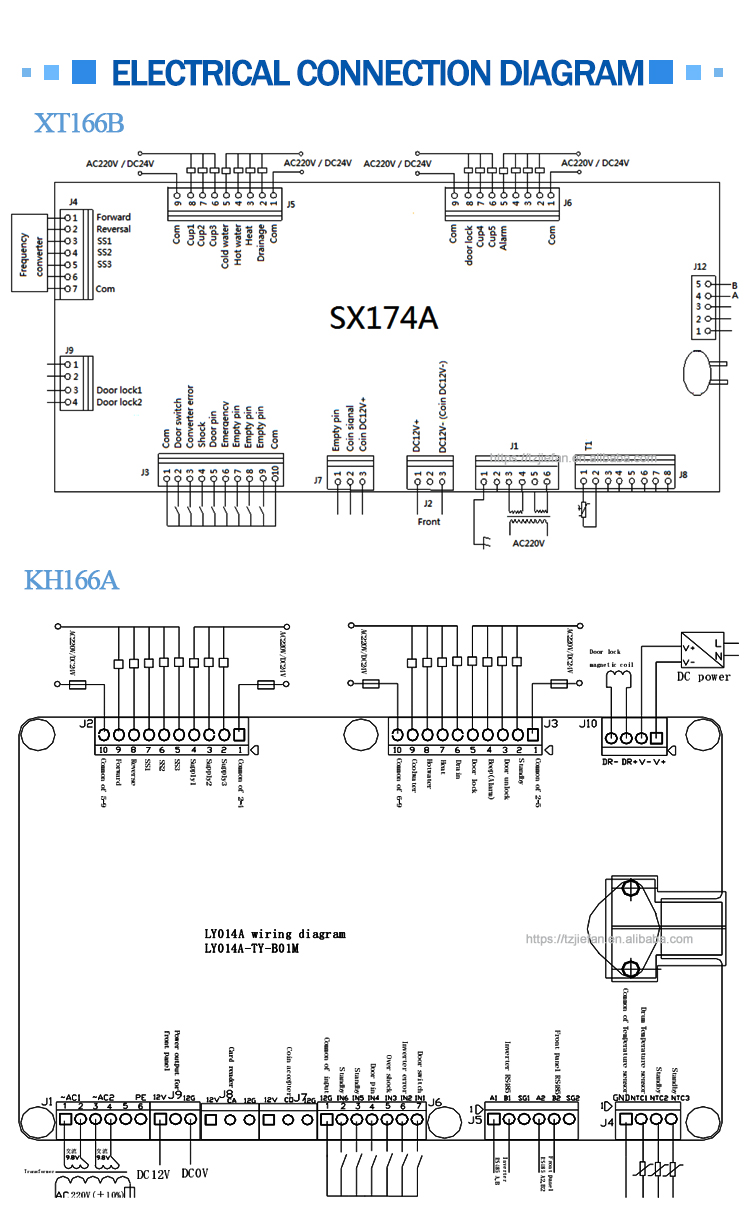

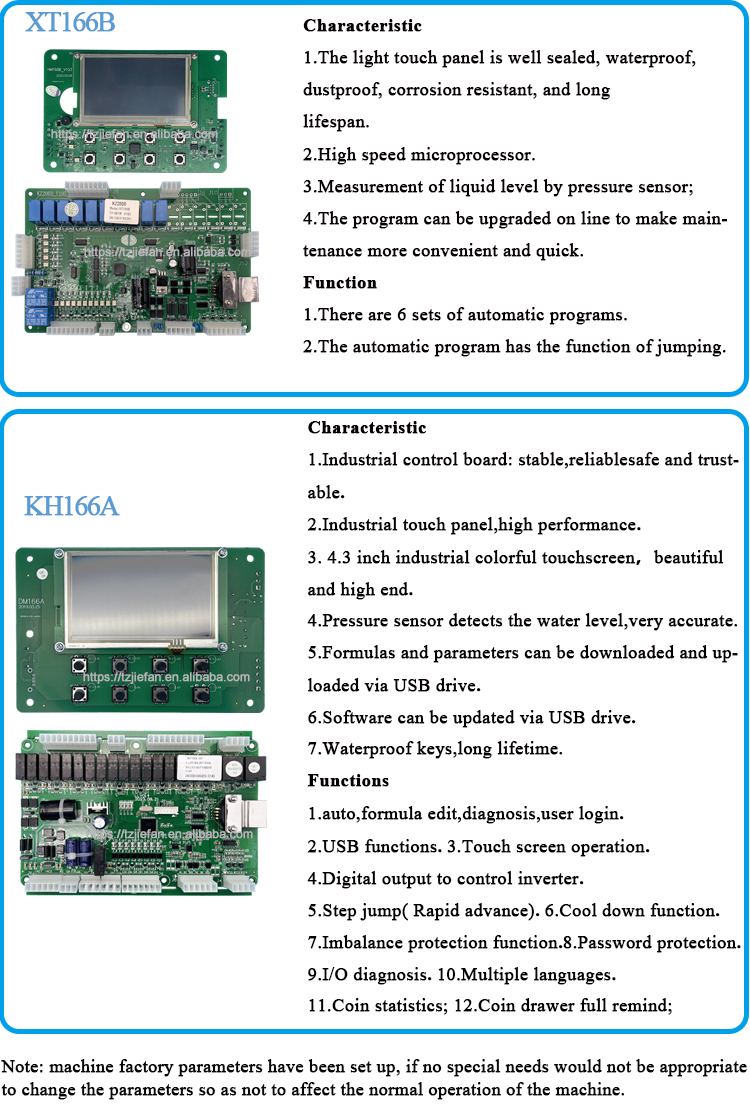

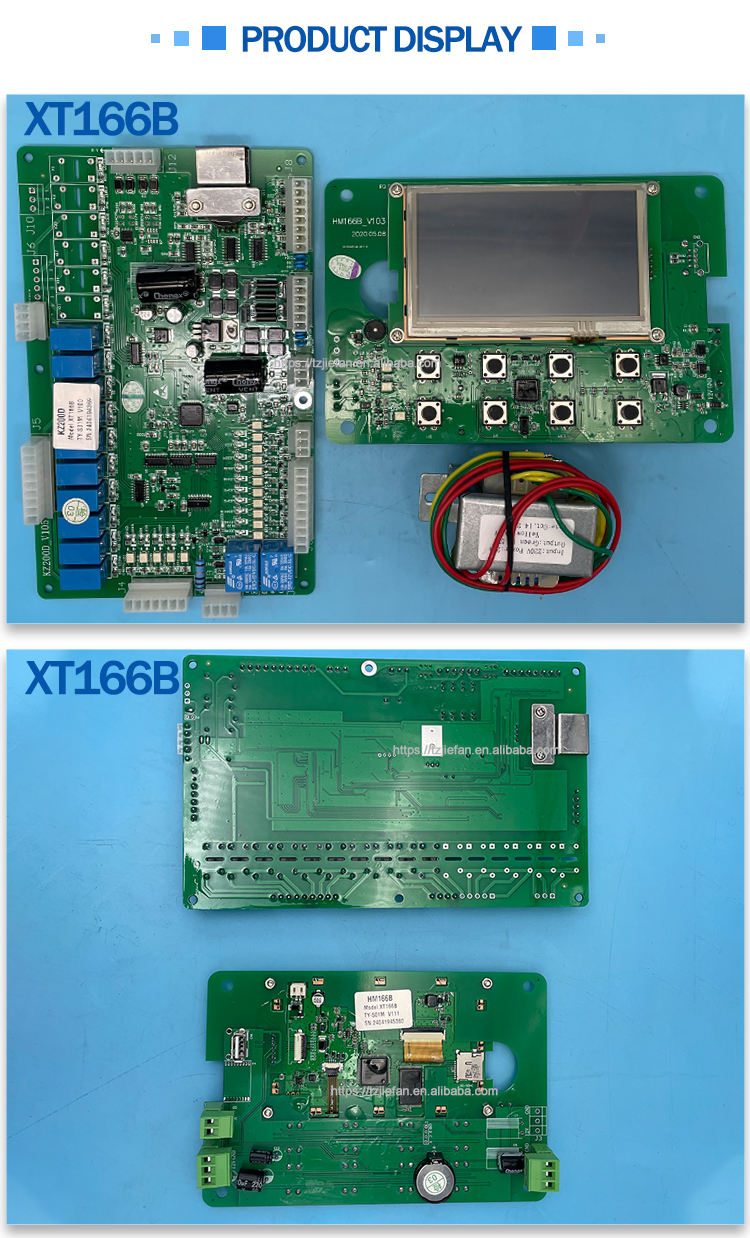

XT166B-KH166A详情_02XT166B-KH166A详情_03XT166B-KH166A详情_04XT166B-KH166A详情_05XT166B-KH166A详情_06SX174000A详情_06

洗脱机详情新_05

803_洗脱机详情新_07

洗脱机详情新_08

洗脱机详情新_09

洗脱机详情新_10

洗脱机详情新_11

洗脱机详情新_12
