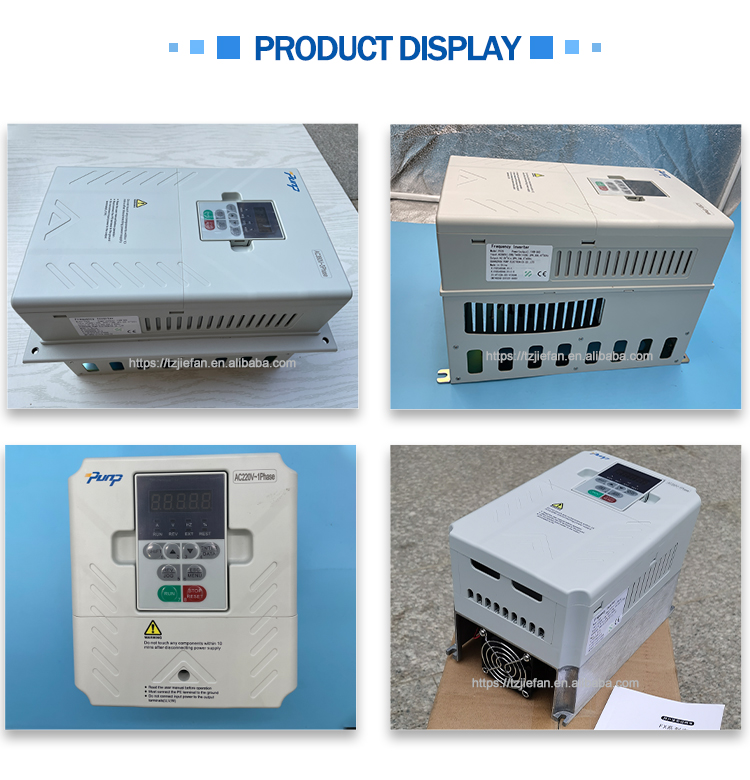

5.5kw 11kw 15kw 2.2kw 3.7kw frequency inverter converter of commercial automatic cloth washing folding ironing machine parts

It is general from all kinds of 3-phase ac asynchronous motor speed regulation. And it can match with AC speed control equipment of the washing Industry deeply. Used with controller of the company, it will provide professional, systematic and convenient overall solutions. It adopts high performance DSP chip control circuit, implements VVVF and vector control, uses VF space voltage vector modulation SVPWM technology, combined with optimized low frequency dead zone compensation characteristics, provides high performance frequency conversion speed regulation. It realizes the low frequency high torque, race range speed regulation of ac asynchronous motor, and effectivrly reduce high harmonics, motor vibration and noise.The voltage utilization ratio is improved by 15% than the traditional SPWM modulation technique.
